VAI SMA™ Stainless Steel Compressed Air Atrium, Complete Unit

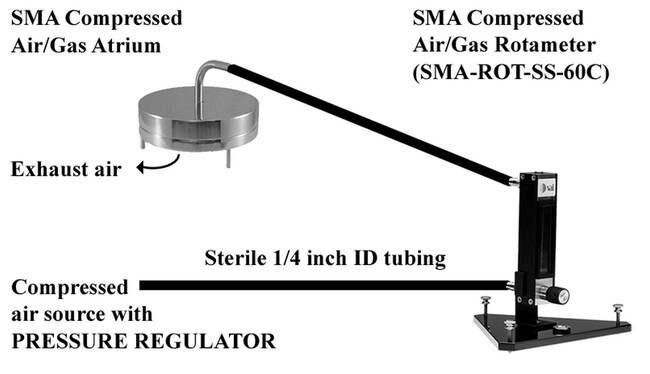

An SMA Compressed Air/Gas Atrium is a 316 Stainless Steel capture device that is connected to a compressed air source. It has an extension tube that attaches to 1/4 inch Hytrel™ tubing.
Supplier: VAI SMA316CA32
Description
- Exhaust air is released from underneath the Atrium without affecting the sample in progress
- Compact size allows them to be located near filling processes where space is limited
- Available as a complete top and bottom assembly
- Vents from the bottom which eliminates the need for additional vacuum connection ports or tubing
- Connection: 0.25 in. Hytrel™ Tubing
Specifications
| SMA Compressed Air/Gas Atrium Complete Assembly | |
| Ideal for 32 mL filled Agar plates, used for the manual collection of microorganisms in compressed air/gas lines | |
| 3.81 cm | |
| 11.43 cm | |
| 240 min. |
| Stainless Steel | |
| 1 to 1.5 cfm | |
| 1.5 in. | |
| 4.5 in. |
