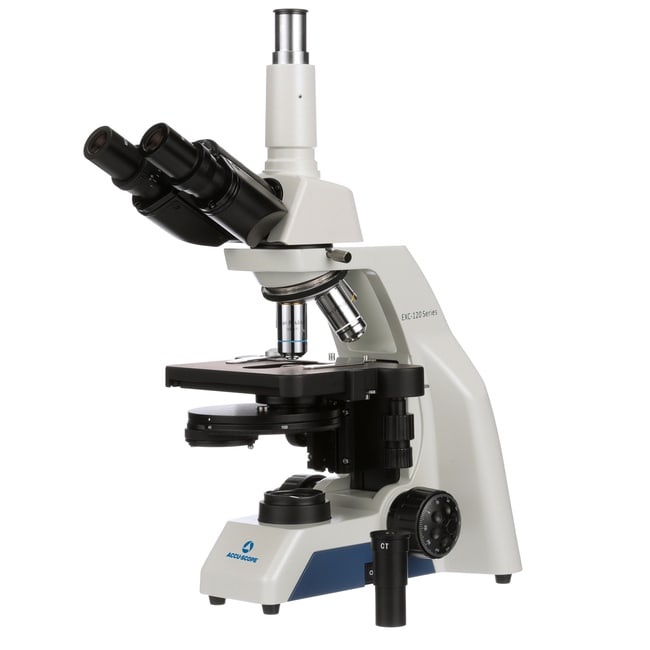

ACCU-SCOPE™ EXC-120 Trinocular Microscope with Turret Phase System

Description

• Optical System: DIN Optical System, f = 160 mm, anti-mold
• Viewing Head: Trinocular, inclined 30° and rotatable 360°
• Single diopter adjustment
• Interpupillary distance adjustment: 48 to 75 mm
• Eyepieces: WF10x/18.5 mm field of view, a pointer is standard in one eyepiece. Eyepieces are locked-in to prevent classroom tampering and accept 19 mm reticles
• Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
• Objectives: Achromat objectives; 4x, 10x, Semi-Plan 40xR and 100xR oil
• Stage: Rackless mechanical stage,size:150 x 139 mm, Travel area: 75 mm (X) x 32 mm (Y) movement with right hand control
• Vernier scale reading to 0.1 mm
• Condenser: Phase condenser, N.A. 1.25 on rack and pinion with iris diaphragm and swing-out filter holder
• Stand: Cast alloy aluminum, built in fixed focus stop allows for rapid focusing while protecting specimens. Built-in carry handle and cord hanger
• Illumination: Variable LED illumination, bulb life rated for 20,000 hours
• UL approved
• Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control. All metal gears
• Accessories: Dust cover, immersion oil and instruction manual included
• Certification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-mold
• Warranty: 5-year limited warranty for parts, labor and electronic components. 1-year warranty on LED bulb
